- Small-focus X-ray source
- 450 kV
- JIMA resolution, 225 kV microfocus source
- 3 µm
- Maximum sample size
- ø 1000 × 1500 mm
- Maximum sample weight
- 100 kg

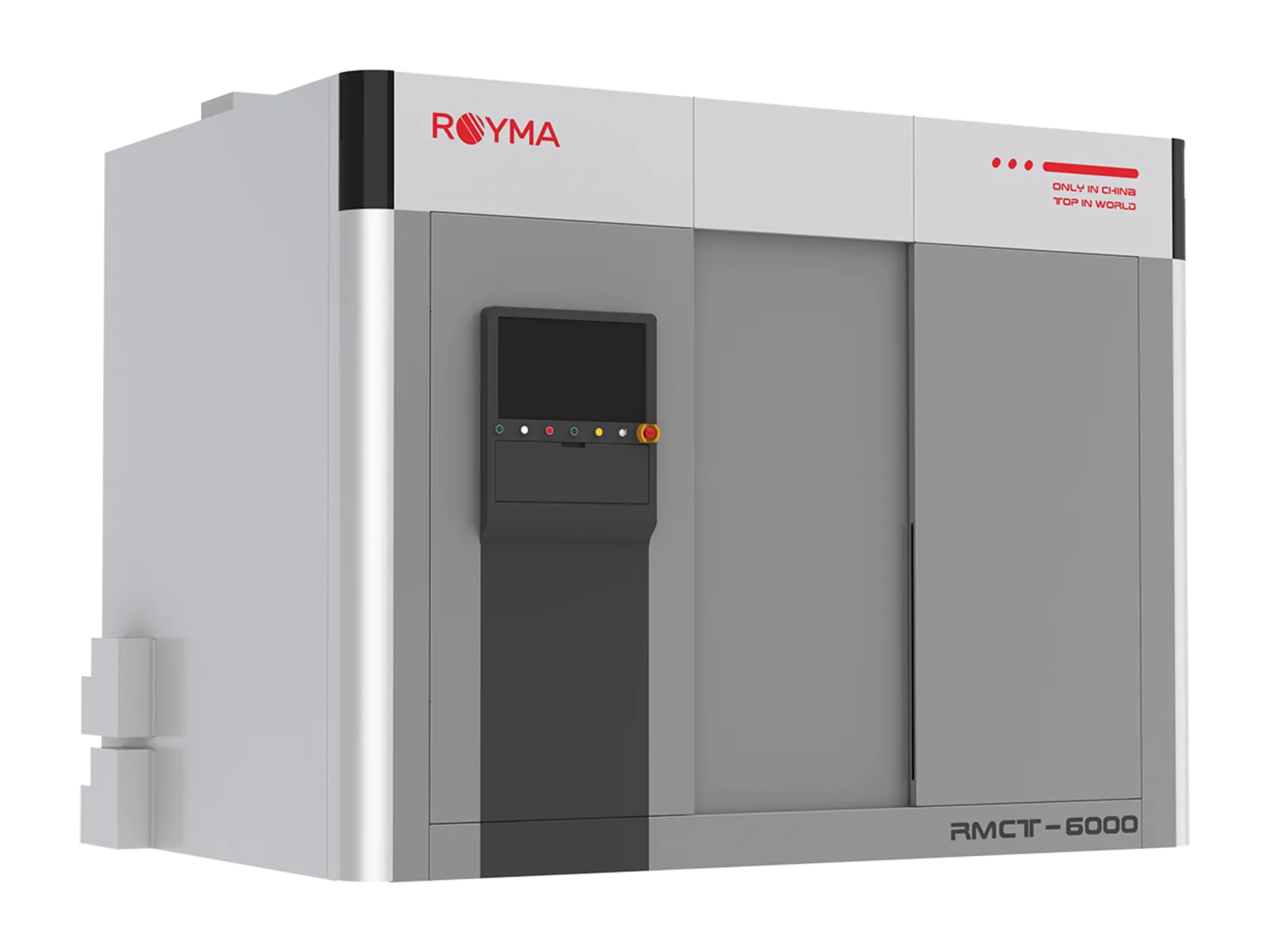

Overview
Between microfocus and accelerator.
Large die-cast parts and battery modules are too dense for a microfocus cabinet and too small to justify an accelerator room. The RMCT6000 closes this gap.
It combines a microfocus source for detail with a 450 kV small-focus source for penetration, and a flat panel with a line detector. You switch between three operating modes on one system.
The cabinet weighs 45 t and needs a prepared floor. For parts up to ø 575 × 830 mm measuring range, the RMCT4000 is the lighter choice.
Features
Detail and penetration in one cabinet.
Two sources
Switch between detail and penetration. The microfocus source offers 225 kV with a JIMA resolution of 3 µm, or 300 kV with 4 µm. The small-focus source delivers 450 kV with 700 or 1500 W.
Two detectors
Scan fast or scan clean. The flat panel has 3072 × 3072 pixels of 139 µm at 60 fps. The line detector has 3072 pixels over 614.4 mm and suppresses scatter in dense parts.
Three operating modes
Match source and detector to the part. The measuring range reaches ø 564 × 857 mm with microfocus and flat panel, ø 603 × 1056 mm with small focus and flat panel, and ø 631 × 810 mm with the line detector.
Room for large parts
Load complete components. The cabinet takes samples up to ø 1000 × 1500 mm and 100 kg.
A stable base
Keep geometry constant under load. The main frame is marble, with 7, 8 or 9 controlled axes by configuration.
From scan to report

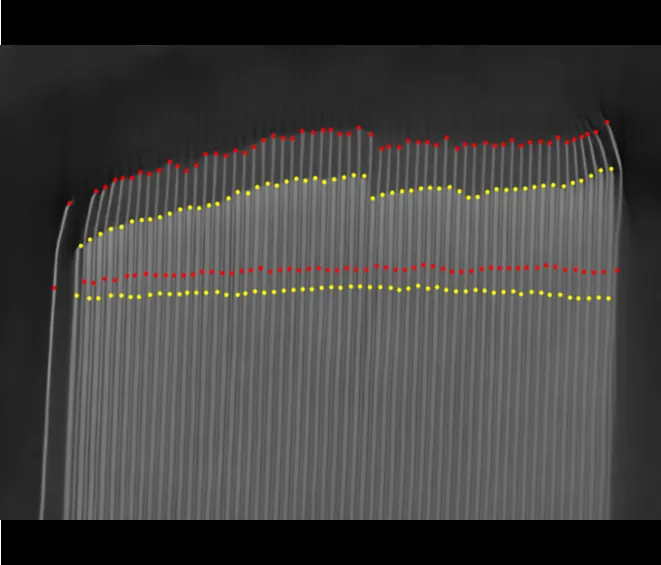

Run one workflow from acquisition to result. Scanning and reconstruction use Royma software. Dedicated automatic defect recognition is available for battery alignment and die-casting defects.
Versions
2 versions, one platform.
RMCT6000
The base system described on this page: microfocus and 450 kV small-focus source in one cabinet.
RMCT6000D
The version for larger and heavier parts: small-focus source with 225 to 600 kV, samples up to 1010 × 1980 mm and 300 kg.
Specifications
Technical data.
| X-ray sources | |
|---|---|
| Microfocus | 225 kV / 500 W, JIMA resolution 3 µm; or 300 kV / 500 W, JIMA resolution 4 µm |
| Small focus | 450 kV, 700 or 1500 W, focus size 0.4 or 1.0 mm |
| Detectors | |
| Flat panel | 3072 × 3072 px, 139 µm, 60 fps; or 2880 × 2880 px, 150 µm, 30 fps; 16 bit |
| Line detector | 3072 px, 0.2 mm pixel interval, 614.4 mm imaging length, 16 bit |
| Operating modes | |
| Microfocus with flat panel | FDD 594–1460 mm, measuring range ø 564 × 857 mm |
| Small focus with flat panel | FDD 724–1590 mm, measuring range ø 603 × 1056 mm |
| Microfocus with line detector | FDD 721–1590 mm, measuring range ø 631 × 810 mm |
| Sample | |
| Maximum sample size | ø 1000 × 1500 mm |
| Maximum sample weight | 100 kg |
| Mechanics | |
| Controlled axes | 7, 8 or 9 |
| Main frame | Marble |
| Installation | |
| Footprint (L × W × H) | 3600 × 2300 × 2900 mm |
| Weight | 45 000 kg |
| Maximum power | 52 kW |
| Radiation leakage | < 0.5 µSv/h |
Applications
Where it is used.

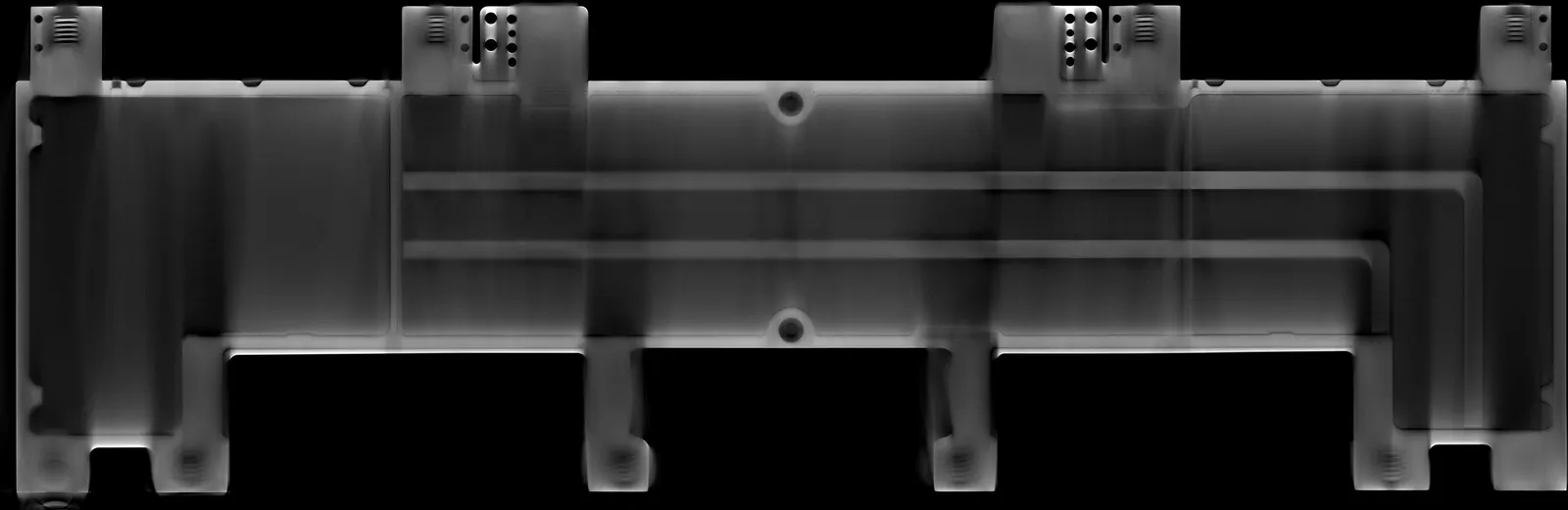

Porosity, shrinkage and cracks in large die-cast parts; internal structure of battery modules and other dense assemblies.
Downloads
Data sheet on request.
We send the current RMCT6000 data sheet together with a first assessment of your part.
